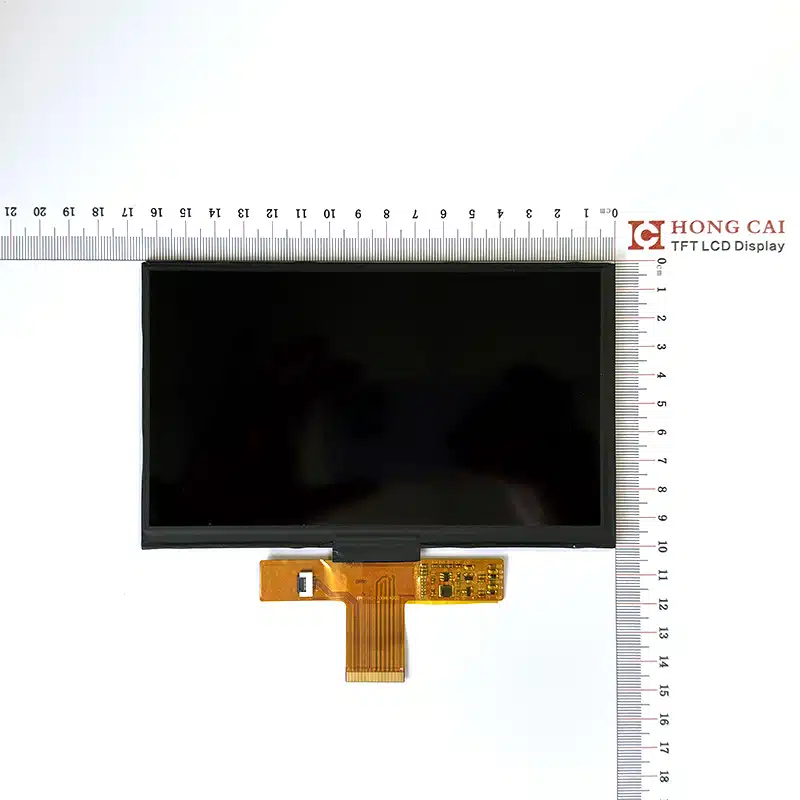

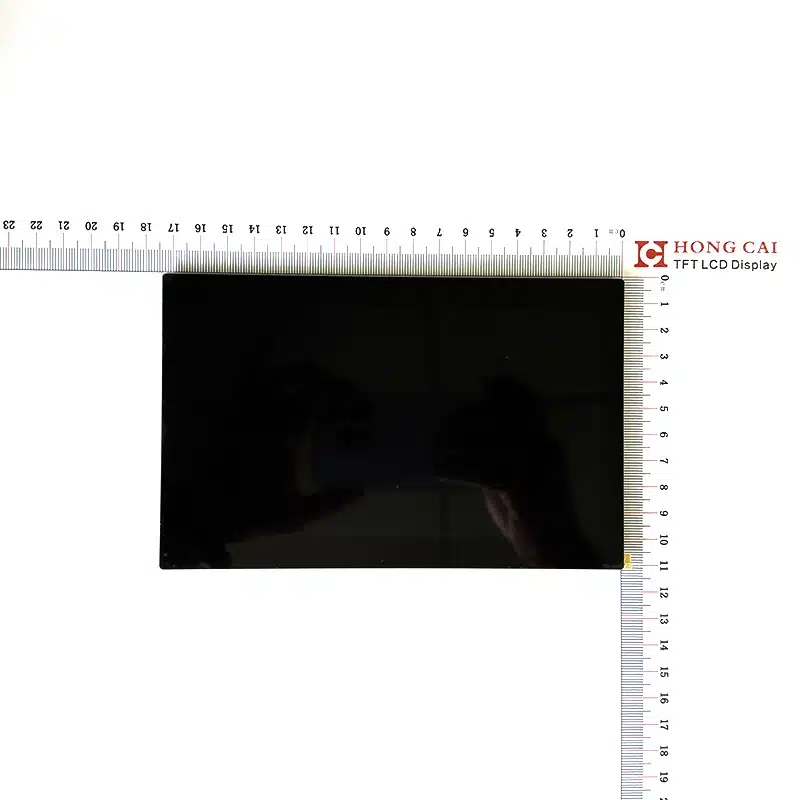

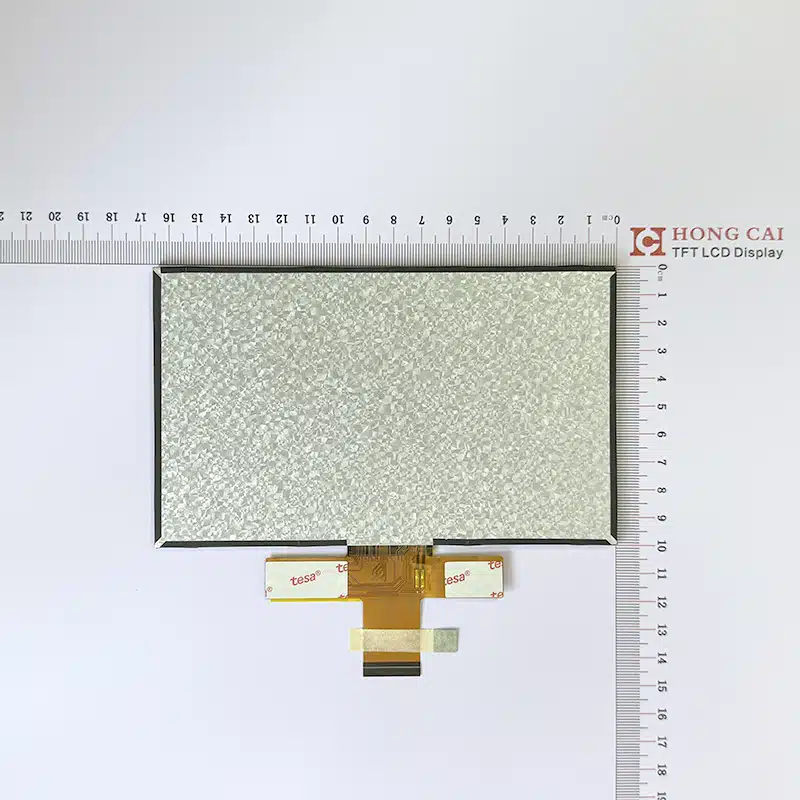

Mipi 7″ TFT Color LCD Display Screen with Capacitive Touch

  • View Direction: IPS
  • Interface: MIPI
  • CTP/RTP : CTP
  • Resolution:1024 X 600
  • Brightness:500 cd/m2 (Typ.)
  • Viewing Angle:75/75/70/75 (Typ.)(CR>=10)
  • Contrast Ratio:800:1 (Typ.) ™Outline Size:164.9 X 100 X 5.1(mm)
Request a Quote Now

LCD 인터페이스 카테고리

메인 메뉴
메뉴

Description

7 inch 1024*600 TFT IPS LCD Display Module,standard 40 pin RGB interface resistive panel companies in China, with bulk cheap electronic components in stock.

HC-700BE5002 is a resolution of 1024×600 pixels, a driver IC EK79001, a brightness of up to 320-800cd/m2 (typical value), There are 2 kinds of TN screen viewing angles and IPS screen. Touch can choose resistive touch screen or capacitive touch screen For touch screen control, high definition high-brightness wide viewing angle. It can operate in temperatures from -20°C to +70°C and has a storage temperature range of -30°C to +80°C.

Item Content Unit
Outline Size 164.90 (W) * 100.00 (H) * 3.5(T) mm
Module size 7.0 inch
Resolution 1024×600 dots
Viewing size 154.21(W) * 85.92(H) mm
Pixel size 0.153 * 0.153 mm
LCD Type TFT (16.7M)/ Transmissive –
Viewing Angle IPS –
Driver IC EK79001+EK –
Backlight Type 3 Serial 7 Parallel LEDs –
Interface Type MIPI –

The quality of Hongcai Lcd display is higher than the industry standard, batches of products have no color cast, color and brightness are consistent, industrial and consumer grade production process requirements, stable quality, continuous supply, worry free after sales service and technical support.

Drawing

PIN

No. Pin Description
1 GND Ground
2 GND Ground
3 CTP VDD3.3V
4 GND Ground
5 GND Ground
6 CTP RST Ground
7 CTP INT Ground
8 CTP SDA
9 CTP SCL Ground
10 GND Ground
11 GND Ground
12 LED A LED +
13 LED K LED –
14 GND Ground
15 VCC(2.8V)  Power Supply for the analog
16 VCC(2.8V) Power Supply for the analog
17 IOVCC(1.8V) Power Supply for the analog
18 IOVCC(1.8V) Power Supply for the analog
19 GND Ground
20 GND Ground
21 CLOCK P
22 CLOCK N
23 GND Ground
24 DSI DON
25 DSI DOP
26 GND Ground
27 DSI D1N(NC)
28 DSI N1P(NC)
29 GND Ground
30 DSI D2N(NC)
31 DSI N2P(NC)
32 GND Ground
33 DSI D3N(NC)
34 DSI N3P(NC)
35 GND Ground
36 TE
37 LCD ID(PD) Ground
38 LCDRST
39 GND Ground
40 GND Ground

Sample

We conduct strict quality control checks, and 100% of each product passes through at least 5 inspection stations before delivery.

No strict MOQ limit. Small quantity orders are also welcome!

Yes. We are a 12 years production manufacturer.We can provide 600K-700K/PCS for one month.

We offer a 12 months warranty. If there is a problem, we will analyze the samples and provide a report with a short-term and long-term solution. If it is a problem with our product, we will replace it.

We already have agents in some regions and we are looking for more agents in certain regions.

FAQ

We can provide 5pcs tft lcd display for free.



The required TFT Lcd screen size, resolution, communication interface type between motherboard and TFT screen, display viewing angle, touch type selection, external dimensions, structural design, voltage, connection method of FPC cable, or specified Hongcai model.

According to the needs of communication and verification, as well as standard or customized materials, such as resistive touch or capacitive touch, wiring FPC or backlight, arrange the structural drawings of TFT Lcd display screens to customers for confirmation within 2-3 days.

The sample delivery time for standardized tft display is 2-3 days. For customized lcd display, samples are made according to the confirmed drawings. Sample production takes time. The sample delivery cycle of Lcd screens is generally 7-12 days. The cycle time is 18-21 days.

After the sample production is completed, it will be inspected according to the sample delivery process, and a series of structural and electrical performance tests, high and low temperature and thermal shock aging tests, vibration tests, salt spray tests, etc. will be arranged according to the quality control procedures, and tests will be carried out according to the requirements of different customers , Provide the actual test report of the tft display to ensure the reliable performance of the tft display.

After receiving the customer’s sample, we will provide the IC driver, the initialization code of the LCD screen, and the technical support will cooperate with the adjustment program to light up.

맞춤형 LCD

TFT LCD Display Types:

  • Backlight Brightness: Standard:300~400cd/m², Medium:450~600cd/m²; High Brightness 800~1000cd/m².
  • Customized change of FPC: interface type, external structure size
  • Touch Panel: Capacitive or resistive, AG/AR/AF, OCA full lamination.
  • Available interfaces : SPI,QSPI,MCU, RGB, LVDS, MiPi
  • LCD Types : TN, EWV, IPS, Transmissive, Transflective

By continuously providing innovative display solutions for different industries around the world, we understand that each product is unique and each user is special. Therefore, Hongcai has produced TFT LCD displays that meet different requirements to serve different industries.

Standard LCD List

Middle LCD List

Transflective LCD List

NO.SizeResolutions View DirectionOutline Dimension
(mm)		Interface
11.3 inch TFT LCD display240*240　IPS26.20*29.22*2.0SPI
240*240　IPS26.20*29.22*1.52SPI/MCU
21.44 inch TFT LCD display128*128TN　29.50*36.50*2.5SPI
31.54 inch TFT LCD display240*240　IPS31.52*33.72*1.90MIPI
240*240　IPS31.52*33.72*1.90SPI
41.77 inch TFT LCD display128*160TN　34.00*45.83*2.35SPI
TN　34.70*46.70*2.30MCU
52.0 inch TFT LCD display176*220TN　37.68*51.30*2.20MCU
TN　37.68*51.30*2.20MCU/SPI
240*320　IPS34.7*47.95*2.20SPI
　IPS34.7*47.95*2.20MCU
62.2 inch TFT LCD display176*220TN　40.30*54.36*2.20SPI
TN　40.20*55.60*2.35MCU
240*320TN　38.68*55.14*2.35MCU
240*320TN　38.68*55.14*2.35MCU/SPI/RGB
72.31 inch TFT LCD display240*320TN　50.80*45.80*2.35MCU
TN　55.00*47.55*2.75RGB
82.4 inch TFT LCD display240*320TN　42.72*60.26*2.30MCU
TN　42.72*60.26*2.30SPI
TN　42.72*59.46*2.50RGB
　IPS42.72*59.46*2.30MCU
　IPS42.72*59.46*2.30MCU/SPI/RGB
　IPS42.72*60.26*2.15SPI
　IPS42.72*60.26*2.30MCU
　IPS42.72*60.26*2.30RGB
92.8 inch TFT LCD display240*320TN　50.00*69.20*2.45MCU
TN　50.00*69.20*2.30MCU
TN　50.00*69.20*2.30SPI
TN　50.00*69.20*2.30RGB
　IPS50.00*69.20*2.30SPI
　IPS50.00*69.20*2.30RGB
　IPS50.00*69.20*2.30MCU
　IPS50.00*69.20*2.15MIPI
240*400TN　43.22*73.20*3.05RGB
TN　43.80*71.92*2.35MCU
103.2 inch TFT LCD display240*320TN　55.04*77.20*2.50SPI
TN　55.04*77.20*2.40MCU
TN　52.28*73.04*2.35MCU
TN　55.10*77.5*2.51RGB/MCU/SPI
TN　55.04*77.20*2.50RGB
240*400TN　47.66*80.90*2.30RGB/MCU/SPI
113.5 inch TFT LCD display320*480TN　54.48*84.71*2.30SPI
TN　54.50*82.90*2.20MCU
TN　54.48*84.71*2.30RGB
TN　54.48*84.71*2.30MIPI
　IPS54.48*84.71*2.30MCU
　IPS54.48*84.71*2.30RGB
480*800　IPS51.32*86.61*2.10RGB
320*240　IPS76.84*63.84*3.3RGB
123.97 inch TFT LCD display480*800TNIPS57.14*96.85*1.90MIPI
　IPS57.14*96.85*2.20MIPI
TNIPS57.14*96.85*1.85MIPI
134.3 inch TFT LCD display480*272TN　105.50*67.20*2.90RGB
TN　105.50*67.20*4.10RGB
　IPS105.50*67.20*2.90RGB
480*800　IPS60.34*102.40*1.85MIPI
144.5 inch TFT LCD display480*854　IPS60.00*109*1.70MIPI
155.0 inch TFT LCD display480*854　IPS65.30*119.30*2.10MIPI
800*480　IPS120.70*75.8*2.90RGB/LVDS
165.5 inch TFT LCD display1280*720　IPS65.30*119.30*1.75MIPI
　IPS71.00*129.66*1.65MIPI
177.0 inch TFT LCD display1024*600　IPS164.9*100*3.5MIPI
　IPS164.9*100*3.5LVDS
　IPS164.9*100*3.5RGB
TN　164.3*97*2.6MIPI
