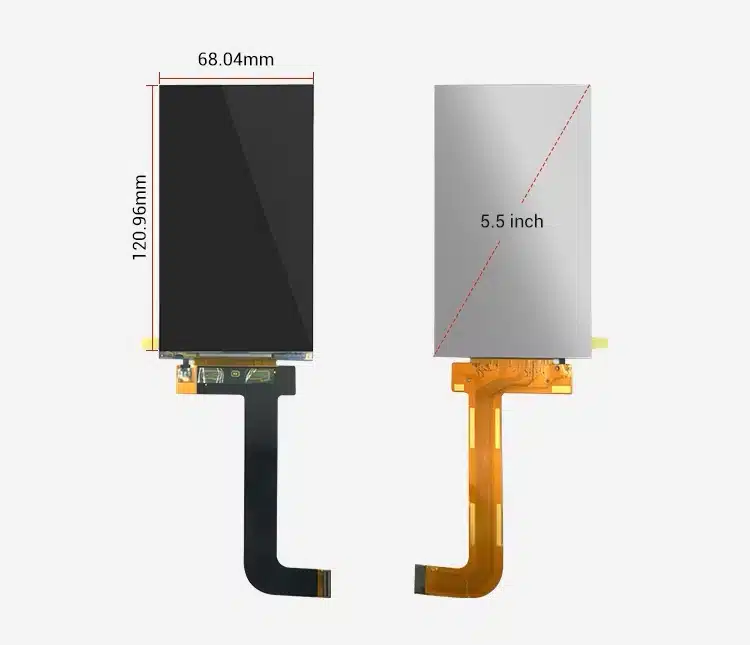

5.5 inch LCD display screen capacitive touchscreen

5.5 inch LCD display screen capacitive touchscreen

  • Size:5.5 inch
  • Resolution : 720×1280
  • View Direction:Free
  • Interface: MIPI
  • Controller IC: HX8394F
  • Touch panel: CTP
  • Brightness: 410 cd/m²
  • Outline Size (mm):71.04（W）* 129.56（H） * 1.55(T)
Enquiry

Interface categories

Menü

Description

HC-550RH3017 is a 5.5 inch LTPS TFT LCD display with capacitive touch function, supports 720×1280 resolution, interface type MIPI, supports up to 16.7 million colors, and is mainly used in handheld devices and industrial applications. The product consists of an LTPS LCD panel, polarizer, IC and major FPCA components.

Item Contents Unit
Size 5.5 inch
LCM Dimension 71.04（W）* 129.56（H） * 1.55(T) mm
LCD Active Area 68.04 * 120.96 mm
Number Of Dots 720*1280 pixel
LCD Type a-Si TFT
Viewing Direction Free
Driver IC HX8394F
Interface Type MIPI
Operating Temperature -20℃~ 70℃
Storage Temperature -30℃~ 80℃
Backlight Type 14 LEDs
Brightness 400 cd/m2

Hongcai lcd display screen offer superior quality that exceeds industry standards. Our products are consistently free of color distortion, with uniform color and brightness across all batches. Designed to meet both industrial and consumer-grade production requirements, our displays provide stable quality, reliable performance, and continuous supply.

Drawing

Interface

NO. Pin
1 VCI
2 IOVCC
3 LEDA
4 LEDK
5 GND
6 NC
7 GND
8 RESET
9 NC
10 TE
11 GND
12 NC
13 NC
14 LCD_ID
15 GND
16 DSI_D2+
17 DSI_D2-
18 GND
19 DSI_D1+
20 DSI_D1-
21 GND
22 DSI_CLK+
23 DSI_CLK-
24 GND
25 DSI_D0+
26 DSI_D0-
27 GND
28 DSI_D3+
29 DSI_D3-
30 GND



Sample

We conduct strict quality control checks, and 100% of each product passes through at least 5 inspection stations before delivery.

No strict MOQ limit. Small quantity orders are also welcome!

Yes. We are a 12 years production manufacturer.We can provide 600K-700K/PCS for one month.

We offer a 12 months warranty. If there is a problem, we will analyze the samples and provide a report with a short-term and long-term solution. If it is a problem with our product, we will replace it.

We already have agents in some regions and we are looking for more agents in certain regions.

FAQ

We can provide 5pcs tft lcd display for free.



The required TFT Lcd screen size, resolution, communication interface type between motherboard and TFT screen, display viewing angle, touch type selection, external dimensions, structural design, voltage, connection method of FPC cable, or specified Hongcai model.

According to the needs of communication and verification, as well as standard or customized materials, such as resistive touch or capacitive touch, wiring FPC or backlight, arrange the structural drawings of TFT Lcd display screens to customers for confirmation within 2-3 days.

The sample delivery time for standardized tft display is 2-3 days. For customized lcd display, samples are made according to the confirmed drawings. Sample production takes time. The sample delivery cycle of Lcd screens is generally 7-12 days. The cycle time is 18-21 days.

After the sample production is completed, it will be inspected according to the sample delivery process, and a series of structural and electrical performance tests, high and low temperature and thermal shock aging tests, vibration tests, salt spray tests, etc. will be arranged according to the quality control procedures, and tests will be carried out according to the requirements of different customers , Provide the actual test report of the tft display to ensure the reliable performance of the tft display.

After receiving the customer’s sample, we will provide the IC driver, the initialization code of the LCD screen, and the technical support will cooperate with the adjustment program to light up.

Benutzerdefiniertes LCD

LCD List Download

深 圳 市 泓 彩 科 技 有 限 公 司
Shenzhen Hongcai Technology Co., Ltd.
www.laserlcd.comEmai:Peter@lcdhc.com
　　　　　　　　　　　　　
NO.SizePart NO.Resolutions View DirectionOutline Dimension
(mm)		Driver ICPINInterfaceBacklight
(LED)		Brightness (Cd/m2)SPEC
10.96inch LCD displayHC096BA100180*160　IPS23.40*46.75*1.5ST7735S104SPI1200　
21.22 inch LCD displayHC-122BD1001240*240　IPS25.76*28.16*1.8ST7789T3103SPI2350Square lcd
31.3 inch LCD displayHC-130HI1202A240*240　IPS26.20*29.22*2.0ST7789V12SPI2350Square lcd
4HC-130BC2401240*240　IPS26.20*29.22*1.52ST7789V324SPI/MCU2300Square lcd
51.4 inch LCD displayHC-140HA2001320*320　IPS27.4*30.3*1.70ST7365P20MCU3350Square lcd
61.44 inch LCD displayHC-144HB1204128*12812 O’clock　29.50*36.50*2.5ST7735S12SPI2300Square lcd
71.54 inch LCD displayHC-154HX2501240*240　IPS31.52*33.72*1.90ST7789V25MIPI3350Square lcd
8HC-154HI2402240*240　IPS31.52*33.72*1.90ST7789V24SPI3350　
91.69 inch LCD displayHC-154BD1601240*240　IPS30.52*33.72*1.70ST7789P316SPI3300Vertical lcd
101.77 inch LCD displayHC-177CB1001128*16012 O’clock　34.00*45.83*2.35ST7735S10SPI2350　
11K177B201412 O’clock　34.70*46.70*2.30ST7735S20MCU2300　
122.0 inch LCD displayK200B2008176*22012 O’clock　37.68*51.30*2.20ST7775R20MCU3300　
13K200A2030012 O’clock　37.68*51.30*2.20ILI9225G20MCU/SPI3350　
14H20U1302240*320　IPS34.7*47.95*2.20ILI9340X13SPI4350　
15H20I2201　IPS34.7*47.95*2.20ST7789V22MCU4350　
162.01 inch LCD displayHC-201ISW001N0240*296　IPS34.04*43.42*1.46ST7789W315SPI4350
172.2 inch LCD displayK220A24101176*22012 O’clock　40.20*55.60*2.35ILI9225G24MCU4350　
18HC-220BI4501240*32012 O’clock　38.68*55.14*2.35ST7789V2-G445MCU4350　
19HC-220BI4002240*32012 O’clock　38.68*55.14*2.35ST7789V2-G440MCU/SPI/RGB4350　
202.31 inch LCD displayK230J3607240*32012 O’clock　50.80*45.80*2.35ILI9342C36MCU4350
21HC-230HJ40016 O’clock　55.00*47.55*2.75ILI9342C40RGB2350
222.4 inch LCD displayH24I2005240*32012 O’clock　42.72*60.26*2.30ST7789V20MCU4350　
23H24I100212 O’clock　42.72*60.26*2.30ST7789V10SPI4350　
24K240B402012 O’clock　42.72*59.46*2.50ILI9341V40RGB4350　
25H24I3601　IPS42.72*59.46*2.30ST7789V36MCU4350　
26K240B45100A　IPS42.72*59.46*2.30ILI9341V45MCU/SPI/RGB4300　
27HC-240BI2012　IPS42.72*60.26*2.15ST7789V20SPI4400　
28HC-240HI2201A　IPS42.72*60.26*2.30ST7789V22MCU4350　
29H24I4001　IPS42.72*60.26*2.35ST7789V40RGB4300　
302.6 inch LCD displayHC-260LI4001320*2406 O’clock　57.6*50.05*3.00ILI9342C40MCU4300
312.8 inch LCD displayK280I4005240*32012 O’clock　50.00*69.20*2.45ST7789V40MCU4350　
32HC-280CI241012 O’clock　50.00*69.20*2.30ST7789V24MCU4350　
33HC-280CI240512 O’clock　50.00*69.20*2.30ST7789V24SPI4350　
34H28B400112 O’clock　50.00*69.20*2.30ILI9341V40RGB4350　
35HC-280HI1206　IPS50.00*69.20*2.30ST7789V212SPI4350　
36K280I40300　IPS50.00*69.20*2.30ST7789V2-G4-A-140RGB4350　
37HC-280BS2421480×640　IPS46.50*65.05*2.35ST770124MIPI8600　
38HC-280HX3301240*320　IPS50.00*69.20*2.15JD985233MIPI4300　
39H28N4009240*40012 O’clock　43.22*73.20*3.05ILI932740RGB4350　
40HC-280HY4001A12 O’clock　43.80*71.92*2.35ST779340MCU4350　
412.95/2.96inch LCD displayHC-295BS2501360*640　IPS42.70*74.70*2.05ST770125MIPI6320　
42HC-296BS3901　IPS42.70*74.70*2.05ST770139RGB6320　
432.95inch LCD displayHC-295BS3001480*854　IPS43.00*74.87*2.24ST770130MIPI6320　
442.99inch LCD displayHC-299HS4001268*800　IPS26.96*80.08*1.80ST770140RGB6350Vertical lcd
453.2 inch LCD displayK320I20300240*32012 O’clock　55.04*77.20*2.50ST7789V20SPI5350　
46HC-320HI400312 O’clock　55.04*77.20*2.40ST7789V240MCU5350　
47K320T2301F12 O’clock　52.28*73.04*2.35GC930623MCU5350　
48HC-320HI500112 O’clock　55.10*77.5*2.51ST7789V50RGB/MCU/SPI6400　
49C32T5001240*40012 O’clock　47.66*80.90*2.30ST779350RGB/MCU/SPI7450　
503.5 inch LCD displayK350C20301320*48012 O’clock　54.48*84.71*2.30ILI948820SPI6350　
51K350C2630112 O’clock　54.50*82.90*2.20ILI948826MCU6350　
52HC-350CJ400812 O’clock　54.48*84.71*2.30ST7796S40RGB6450　
53H35K200112 O’clock　54.48*84.71*2.30ST7796S20MIPI6350　
54H35J3501　IPS54.48*84.71*2.30ST7796S35MCU6350　
55H35J4502　IPS54.48*84.71*2.30ST7796S45RGB6350　

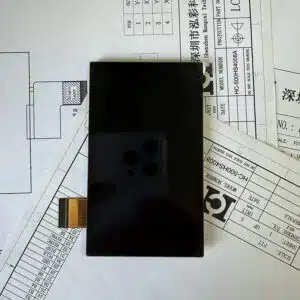

56HC-350BS2603CT480*800　IPS50.58*85.76*2.00ST7701S26MIPI10700　
57C35B5102480*800　IPS51.32*86.61*2.10ST7701S51RGB7400　
58HC-350HS5401320*240　IPS76.84*63.84*3.3ST7272A54RGB6600　
59HC-350BS5402320*240　IPS76.84*63.84*3.3ST7272A54RGB6/12600　
603.71 inch LCD displayHC-371BS4501A240*960　IPS25.3*98.89*1.65ST7701SN45RGB4350Vertical lcd
613.97 inch LCD displayHC-397BS2006480*800　IPS55.60*96.2*2.30NT3551020MCU8300　
62HC-397BS2503　　IPS57.14*96.85*1.85ST7701S25MIPI8400　
634.3 inch LCD displayK430N40103480*27212 O’clock　105.50*67.20*2.90ST728240RGB12500　
64HC-430BN403212 O’clock　105.50*67.20*2.90NV3047E40RGB7350　
65K43045102T12 O’clock　105.50*67.20*4.10ST728245RGB9500　
66HC-430BI4027　IPS105.50*67.20*2.90ILI6485D40RGB8350　
67HC-430HS4036　IPS105.50*67.20*2.90ST728345RGB7400　
68C43H4505　IPS105.50*67.20*2.90ST728345RGB10500　
69HC-430BS4030480*800　IPS60.34*102.40*1.95ST7701S40RGB8350　
70HC-430BS4509　IPS60.34*102.40*1.95NT3551045MCU8350　
71K430BS2501　IPS60.34*102.40*1.85ST7701S25MIPI10300　
724.5 inch LCD displayK450S3008C480*854　IPS60.00*109*1.70ST7701S30MIPI10350　
735.0 inch LCD displayHC-495BS4006480*854　IPS65.30*119.30*2.10ST7701S40RGB12350　
74K495I25102480*854　IPS65.30*119.30*2.10ST7701S25MIPI12350　
75HC-500HS4008800*480　IPS120.70*75.8*2.90ST726540RGB/LVDS18650　
76HC-499HI3008A720*1280　IPS65.30*119.30*1.95ILI9881D30MIPI16500　
77HC-499HS3107720*1280　IPS65.30*119.30*2.1ST770331MIPI12300　
785.5 inch LCD displayHC-550TH3020A720*1280　IPS70.6*128.6*1.80HX8394F30MIPI14300　
79HC-550HI3017720*1280　IPS71.04*129.56*1.60ILI9881 30MIPI14300　
805.6 inch LCD display HC560QA4001640*480　TN126.5*129.56*1.60ILI619240RGB15400　
816.99 inch LCD displayHC-700BS3003280*1424　IPS38.20*181.47*3.45ST7703I30MIPI8600Vertical lcd
827.0 inch LCD displayHC-700QH4008A800*48012 O’clock　164.20*99.20*5.0HX8264+HX866440RGB21400　
83HC-700QH40061024*600　IPS164.9*100*5.5HX8282-A11DPD400+
HX8696-A01APD300		40LVDS30500　
84HC-700BE4007A　IPS164.9*100*5.5EK79001AD3+EK73217BCGA40MIPI30500　
85HC-700QH5009　IPS164.9*100*5.5HX8282-A11DPD400+
HX8696-A01APD300		50RGB30500　
86HC-700BE2503　IPS164.9*100*3.5EK79007AD3+
EK73217BCGA		25MIPI30550　
87HC-700BH4003　IPS163.9*102.7*3.4HX8282-A11D+
HX8696-A01A		40LVDS24550　
88HC-700BE5002　IPS164.9*100*3.5HX8282-A11D+
HX8696-A01A		50RGB3 Serial 7 Parallel550　
89HC-700BE25026 O’clock　164.3*97*2.6EK79007AD+
EK73217BCGA		25MIPI21500　
907.0 inch LCD displayHC-700HJ3101800*1280　IPS99.59*160.88*2.35JD9365DA-H331MIPI20450　
918 inch LCD displayHC-800HJ3101800*1280 IPS114.6*184.10*2.6JD9365DA-H331MIPI24450　
9210.1 inch LCD displayHC-101II3101800*1280　IPS146.96*232.00*2.7JD9365DA31MIPI32450　
9310.1 inch LCD displayHC-101QE40011280*800　IPS229.46*149.10*2.6EK7920240LVDS42800　

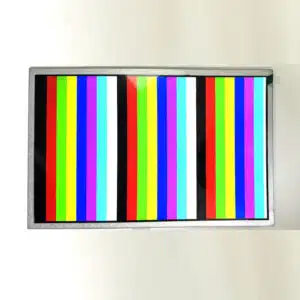

9412.1 inch LCD displayHC-121IN40011280*800　IPS277.7*180.60*6.2 49LVDS44900　
9512.3 inch LCD displayHC-101QE40011920*720　IPS300*123.50*2.8 60MIPI44900　
