3.2 inch MCU lcd display tft screen 240×320 GC9306

3.2 inch MCU lcd display tft screen 240×320 GC9306

  • Size:3.2 inch
  • Resolution : 240×320 dots
  • View Direction: 12 o’clock
  • Interface:MCU
  • Driver IC: ST7789V
  • Touch Panel:RTP/CTP
  • Brightness(cd/m²): 320
  • Outline Dimension: 52.28（W）* 73.04（H） * 2.35(T) mm
Inquire Now

Interface Categories

Hauptmenü

Description

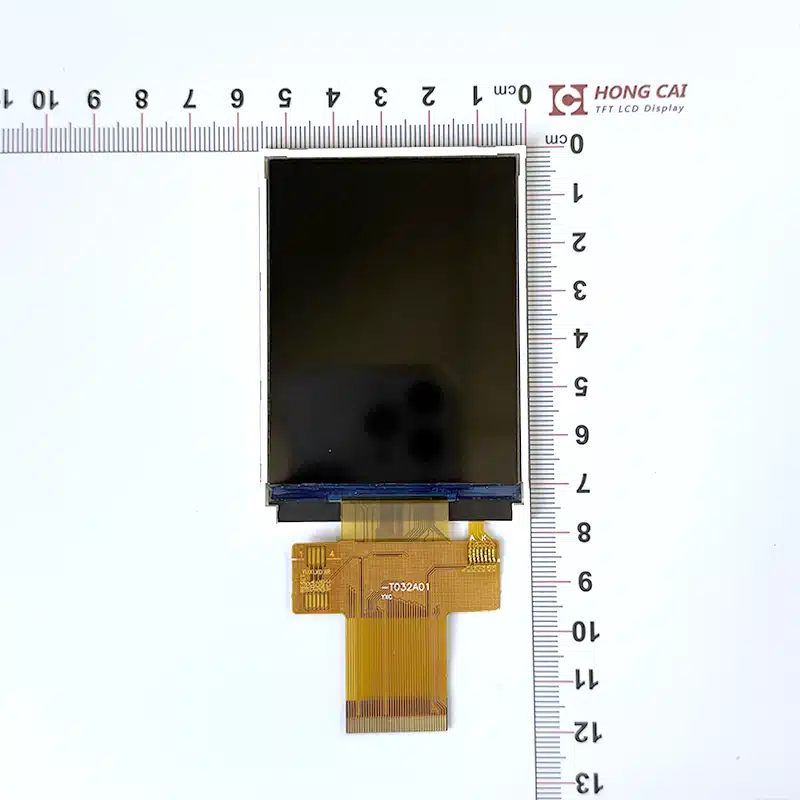

3.2″ TFT LCD display Ultra wide display viewing angle screen.K320T2301F is a 3.2 inch tft lcd display with a resolution of 240×320 pixels, a driver IC GC9306 Includes resistive touchscreen with XPT2046 controller.

Item Contents Unit
Size 3.2 inch
LCM Dimension 52.28（W）* 73.04（H） * 2.35(T) mm
LCD Active Area 48.60* 64.80 mm
Number Of Dots 240×320 pixel
LCD Type a-Si TFT
Viewing Direction 12 o’clock
Driver IC GC9306
Interface Type MCU
Operating Temperature -20℃~ 70℃
Storage Temperature -30℃~ 80℃
Backlight Type 5 LEDs
Brightness 380 cd/m2

Hongcai tft lcd display screen manufacturer offer superior quality that exceeds industry standards. Our products are consistently free of color distortion, with uniform color and brightness across all batches. Designed to meet both industrial and consumer-grade production requirements, our displays provide stable quality, reliable performance, and continuous supply.

Drawing

PIN

NO. Symbol Description
1 LEDA BACKLIGHT ANODE
2 LEDK1 BACKLIGHT CATHODE
3 LEDK2 BACKLIGHT CATHODE
4 LEDK3 BACKLIGHT CATHODE
5 LEDK4 BACKLIGHT CATHODE
6 GND Ground
7 VDD POWER SUPPLY
8 IOVCC I/O   POWER SUPPLY
9 TE Frame mark.
10 CS Chip enable, Low-active.
11 RESET Reset pin
12 RS Data/Command register address.
13 WR Write signal, rising-edge-trigger.
14 RD Read signal, rising-edge-active.
15 DB7 Data Bus
16 DB6 Data Bus
17 DB5 Data Bus
18 DB4 Data Bus
19 DB3 Data Bus
20 DB2 Data Bus
21 DB1 Data Bus
22 DB0 Data Bus
23 GND Ground

Sample

We conduct strict quality control checks, and 100% of each product passes through at least 5 inspection stations before delivery.

No strict MOQ limit. Small quantity orders are also welcome!

Yes. We are a 12 years production manufacturer.We can provide 600K-700K/PCS for one month.

We offer a 12 months warranty. If there is a problem, we will analyze the samples and provide a report with a short-term and long-term solution. If it is a problem with our product, we will replace it.

We already have agents in some regions and we are looking for more agents in certain regions.

FAQ

We can provide 5pcs tft lcd display for free.



The required TFT Lcd screen size, resolution, communication interface type between motherboard and TFT screen, display viewing angle, touch type selection, external dimensions, structural design, voltage, connection method of FPC cable, or specified Hongcai model.

According to the needs of communication and verification, as well as standard or customized materials, such as resistive touch or capacitive touch, wiring FPC or backlight, arrange the structural drawings of TFT Lcd display screens to customers for confirmation within 2-3 days.

The sample delivery time for standardized tft display is 2-3 days. For customized lcd display, samples are made according to the confirmed drawings. Sample production takes time. The sample delivery cycle of Lcd screens is generally 7-12 days. The cycle time is 18-21 days.

After the sample production is completed, it will be inspected according to the sample delivery process, and a series of structural and electrical performance tests, high and low temperature and thermal shock aging tests, vibration tests, salt spray tests, etc. will be arranged according to the quality control procedures, and tests will be carried out according to the requirements of different customers , Provide the actual test report of the tft display to ensure the reliable performance of the tft display.

After receiving the customer’s sample, we will provide the IC driver, the initialization code of the LCD screen, and the technical support will cooperate with the adjustment program to light up.
